Remove charge air line
Remove charge air line

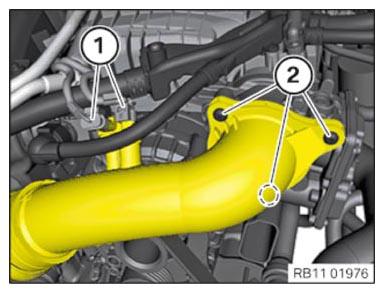

Unlock and disconnect connector (1).
Loosen screws (2).
Courtesy of BMW OF NORTH AMERICA, INC.

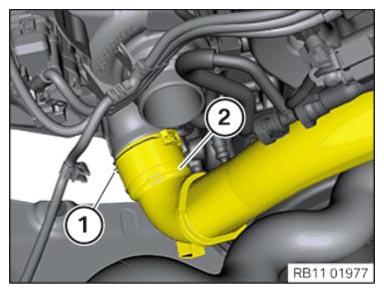

Unlock the clamp (1).
Detach the charge air duct (2) from the exhaust turbocharger.
Courtesy of BMW OF NORTH AMERICA, INC.

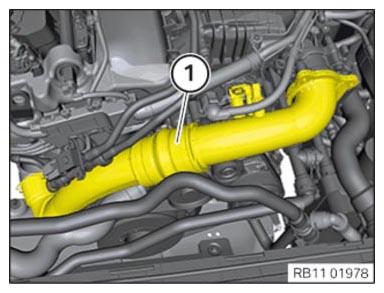

Remove the charge air duct (1) towards the top.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
