Removing the rear axle support

Release the ground cable of the rear axle support

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

Loosen screw (1).
The ground cable (2) has been released from the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

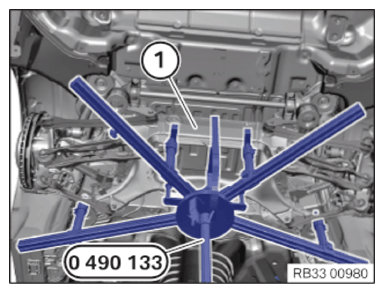

Carefully lower and remove the rear axle support (1) with the universal jack 0 490 133 (00 2 030) .

Courtesy of BMW OF NORTH AMERICA, INC.
