Remove rear center armrest
Remove rear center armrest

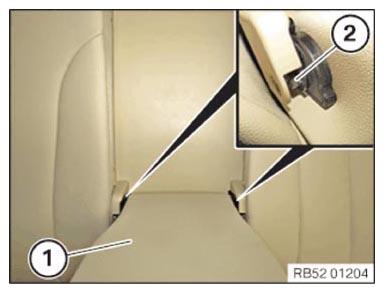

Fold the center armrest (1) down.
Protect the backrest cover against dirt contamination.
Press away the backrest cover and cushion in the area of the screws (2) and release the screws (2).
Fold the center armrest (1) up and remove it.
Courtesy of BMW OF NORTH AMERICA, INC.
