Removing the cushion for the thigh support of the front seat

• Shift the thigh support (1) completely to the front.
• Raise detents in sequence from (A) to (D) and pull the thigh support (1) forwards in the arrow direction at the same time.

  Courtesy of BMW OF NORTH AMERICA, INC.

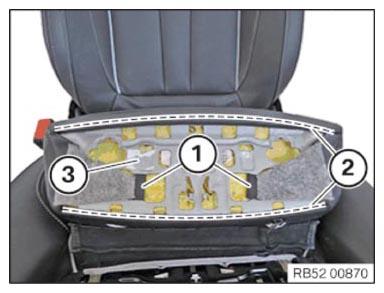

• Detach welt (1).
• Detach the welt (2) from the mounting plate (3).
• Remove the mounting plate (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

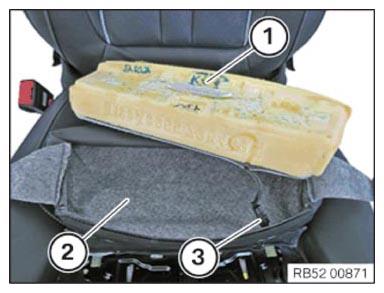

• Feed the cushion (1) out of the seat cover (2).
• Unlock plug connection (3) and disconnect.
