Removing both trims on the tail light
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the trim on the tail light

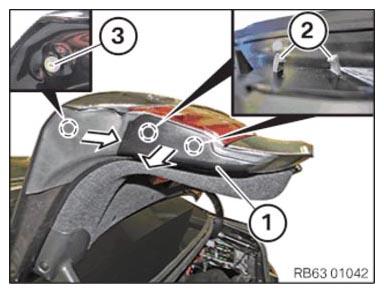

- Unclip the trim on the tail light (1) from the detents (2) in the direction of the arrow.
- Release the trim on the tail light (1) from the clip (3) in arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
|
