Installing starter motor
Prerequisite
ACOUSTIC COVER of the oil pan has been removed.

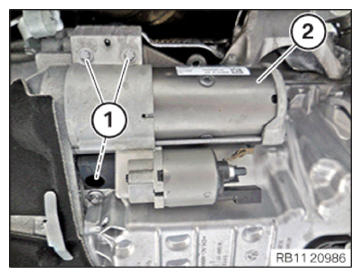

- Insert and install the starter motor (2).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Starter motor to crankcase | ||
| M8x60 | Tightening torque | 19 Nm |
Prerequisite
ACOUSTIC COVER of the oil pan has been removed.
| Starter motor to crankcase | ||
| M8x60 | Tightening torque | 19 Nm |
