Removing the external radiator
NOTE:
Description is for left component only. Procedure on the right side is identical.

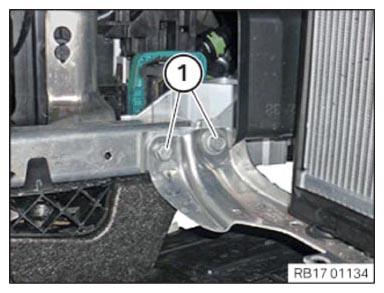

- Loosen screw (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

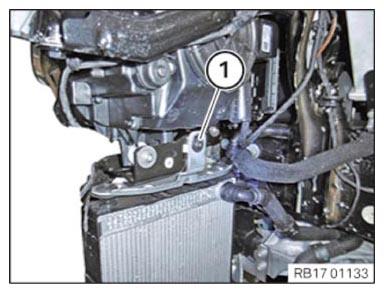

- Loosen screws (1).
- Place the external radiator aside and fix it.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
