Releasing the oil filter cover

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

Preliminary work

Remove the acoustic COVER .
Uninstall the DME control unit COVER .
Remove the oil FILLER CAP .

NOTE: RISK OF DAMAGE Engine damage caused by excessively filling the engine with motor oil. Filling an excessive quantity of motor oil may cause engine damage.

Observe the exact motor oil filling capacity.
Allow engine oil to drip off when draining.

NOTE: TECHNICAL INFORMATION
Make sure the vehicle is operating temperature for engine oil service (engine oil temperature > 70°C).

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

NOTE: RISK OF DAMAGE Contaminant or foreign body. Contamination can result in malfunctions, loss of function or leaks.

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

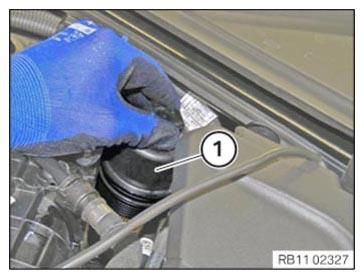

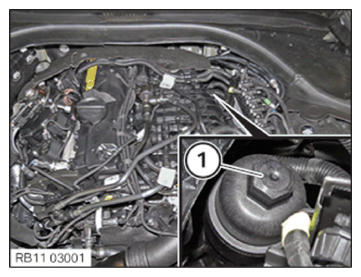

Loosen the oil filter cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the oil filter cover (1) with the oil filter insert upwards.
Collect the leakage motor oil using a cloth as needed.

Courtesy of BMW OF NORTH AMERICA, INC.
