00 00 Maintenance
>>
00 00 252 BMW engine oil service without supplementary service (540i 2021-2022, 540i xDrive 2021-2022)
>>
Tightening the oil drain plug
Tightening the oil drain plug

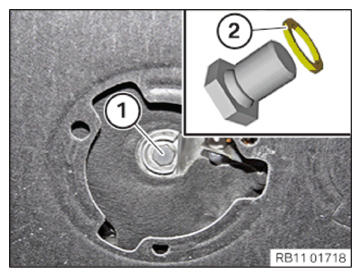

Replace sealing ring (2).
Parts:
Sealing ring
Position oil drain plug (1) on the oil pan and tighten.
TIGHTENING TORQUES SPECIFICATION
Oil drain plug
M12x16 Replace the sealing ring.
Tightening torque
25 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

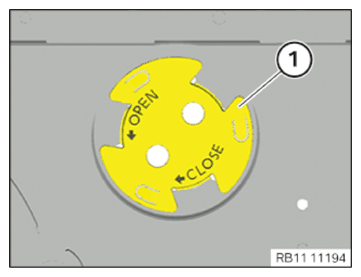

Install service cap (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
