Installing the oil filter element

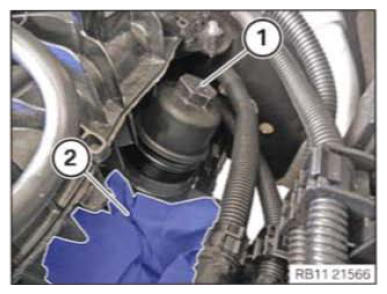

- Feed in and install the oil filter cover (1) with the oil filter element.
- Remove the lint-free rag (2).

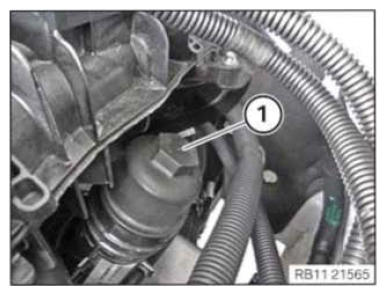

- Tighten the oil filter cover (1).TIGHTENING TORQUES SPECIFICATION

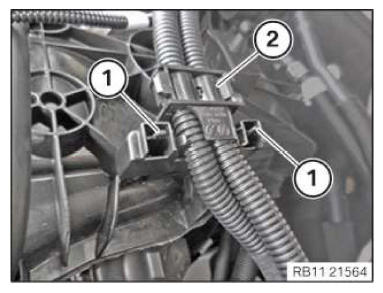

Oil filter cover to oil filter module O-ring lightly oiled. Tightening torque 25 Nm - Insert and install the wiring harness section (2) for the injectors and ignition coils.
- Ensure that the locking mechanisms (1) engage audibly.
