Tightening the oil drain plug

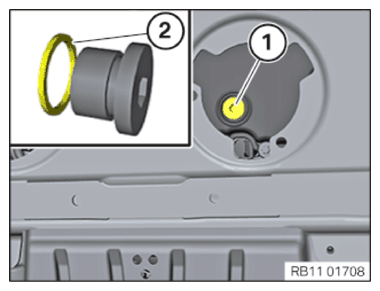

- Replace sealing ring (2).
Parts:
Sealing ring
- Position oil drain plug (1) on the oil pan and tighten.
TIGHTENING TORQUES SPECIFICATION
| Oil drain plug on oil pan |
M18x1.5
Replace the sealing ring. |
Tightening torque |
40 Nm |
