Replace oil filter element

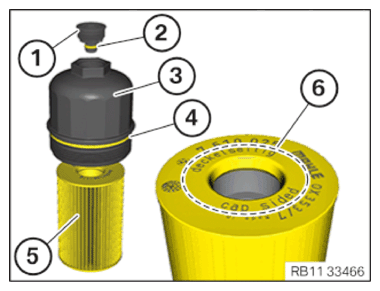

→ Replacing the oil filter element with the oil drain plug
- Replace oil drain plug (1) with sealing ring (2).
Parts: Oil drain plug with the sealing ring
- Coat sealing ring (2) with engine oil.
Screw in oil drain plug (1) with a few turns by hand into oil filter housing (3).
- Pull out oil filter element (5) from oil filter housing (3).
- Release the sealing ring (4) with a screwdriver from the oil filter housing (3).
- Replace sealing ring (2) and oil filter (5).
Parts: Sealing ring, oil filter
- Mount sealing ring (4) in the groove on the oil filter housing.
- Coat sealing ring (4) with engine oil.
- Note installation position (6) when inserting oil filter element (5) into oil filter housing (3).
- Oil filter element (5) must engage audibly.

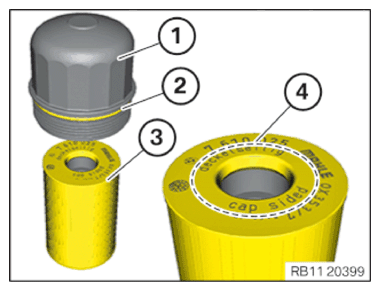

→ Replacing the oil filter element without the oil drain plug
- Pull the oil filter element (3) out of the oil filter housing (1).
- Release the sealing ring (2) with a screwdriver from the oil filter housing (1).
- Mount the sealing ring (2) in the groove on the oil filter housing.
- Replace sealing ring (2) and the oil filter.
Parts: Sealing ring, oil filter
- Coat the sealing ring (2) with engine oil.
- Observe the mounting orientation (4) when inserting the oil filter element (3) in the oil filter housing (1).
Oil filter element (3) must engage audibly.
