Installing the air filter insert
Cleaning the lower section of the intake filter housing

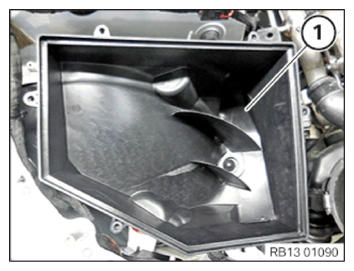

- Clean the lower section of the intake filter housing (1).
- Install the air filter insert (1).

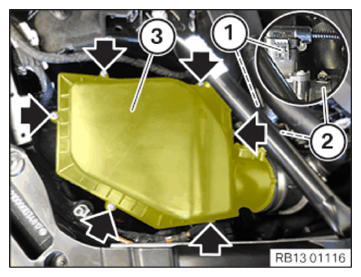

- Insert and install the upper part of the intake filter housing (3).
- Tighten the screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Intake filter housing upper section to intake filter housing lower section | ||
| Oval-head screw | Tightening torques | 2.5 Nm |
- Tighten clamp (2).
TIGHTENING TORQUE SPECIFICATION
| Clean air pipe to upper section of intake filter housing | ||
| Tightening torque | 3 Nm | |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
