Installing gasoline particulate filter

• Replace gasoline particulate filter (1).

  Parts:  Gasoline particulate filter

• Feed the gasoline particulate filter (1) in with the assistance of a second person and install it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version 1 (Ribbon clamp)

  Replace the (1) ribbon clamp.

  Parts:  Ribbon cable clamp

  Tighten the ribbon clamp (1).

  TIGHTENING TORQUES SPECIFICATION



  Exhaust system to catalytic converter
  Ribbon clamp nut M8 Replace the ribbon clamp.	Tightening torque	26 Nm
  Ribbon clamp nut M10 Replace the ribbon clamp.	Tightening torque	55 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version 2 (V-band clamp)

  Replace V-band clamp.

  Parts:  V-band clamp

  Unscrew the nut (1) and remove the sealing ring (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Bend all sheet metal tabs over with a suitable tool, except those in the marked areas.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the V-clip (1) on the sealing ring (2).
• Make sure that the V-clip (1) is positioned correctly on the sealing ring (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure that, after mounting, the V-ribbon clip is on the sheet metal tabs (marks).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the exhaust system (1) with the catalytic converter (2) (arrow) and position correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

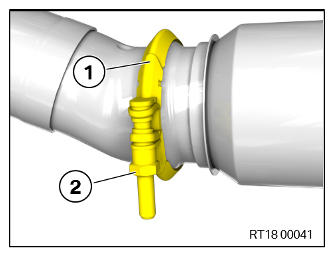

• Make sure that V-clip (1) is fitted correctly.
• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  V-ribbon clip to catalytic converter
  V-ribbon clip Replace V-ribbon clip.	Tightening torque	25 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

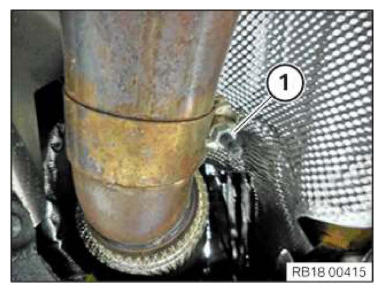

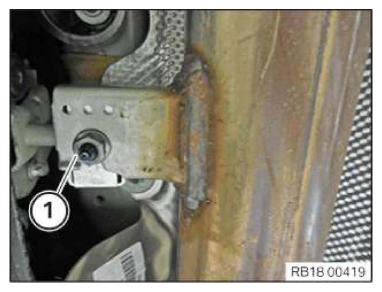

• Replace nut (1).

  Parts:  Nut

• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Front pipe/front silencer/gasoline particulate filter to the transmission holder
  M8 Replace nut.	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

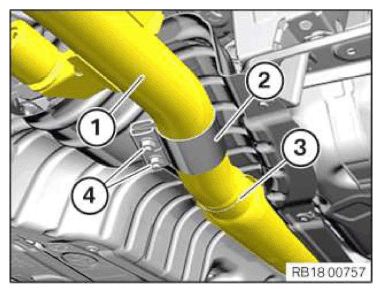

• Connect the gasoline particulate filter (3) with a gripper clamp (2) to the rear silencer (1).
• Center the gripper clamp (2) and tighten the nuts (4).
  TIGHTENING TORQUES SPECIFICATION



  Clamp with partial replacement of exhaust system
  Clamp	Tightening torque	45 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the tunnel connecting SUPPORTS .
• When replacing the gasoline particulate filter: register the gasoline PARTICULATE FILTER .
