Grease the brake pads, brake anchor plate and brake caliper using brake pad paste (17 inch brake)

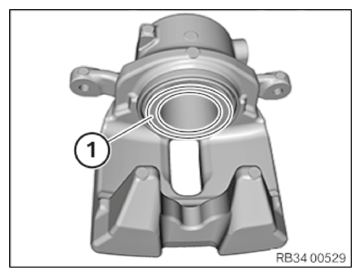

- Clean the contact surfaces (1) of the brake piston using brake cleaner.
CONSUMABLE - BRAKE CLEANER DESCRIPTION
| Brake cleaner 2.0 | 500 ml, Spray can | 83192365214 |
| 20, Canister | 83192365215 |
- Check dust boots for damage; replace if necessary.

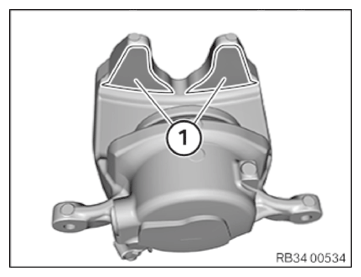

- Clean the contact surfaces (1) of the brake caliper with brake cleaner and apply a thin coat of brake pad paste.
CONSUMABLE - BRAKE BLOCK PASTE DESCRIPTION
| Brake block paste * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only. | 3 g, Bag | 83192158851 |
| 100 g, Tube | 83192158852 | |
| 5 g, TU* | 83230140233 |
- Clean the contact surfaces with brake cleaner.

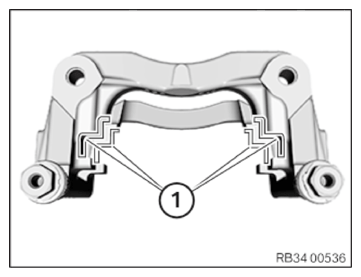

The contact surfaces (1) for the brake pads should not be cleaned mechanically if possible in order to avoid damaging the surface coating.
- Carefully clean highly contaminated contact surfaces (1) with a suitable tool (e.g. brass wire brush, nylon brush).
- Apply a thin coat of brake pad paste to the contact surfaces (1).

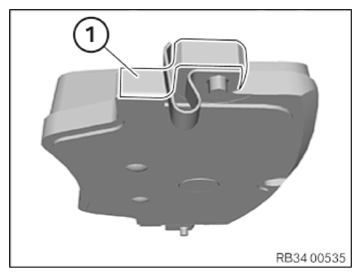

- Apply a thin coating of brake pad paste to both sides of the T-head of the brake pad in area (1).
