(Installing the microfilter for the interior ventilation)
- Align the microfilter for interior ventilation (2) so that the arrows (1) on the microfilters for interior ventilation (2) point to the direction of travel during the installation.
- Slide both microfilters for interior ventilation (1) up into the microfilter housing (2).

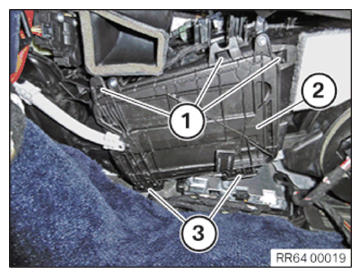

- Insert cover of the microfilter housing (2) at the guides (3).
- Engage detents (1).

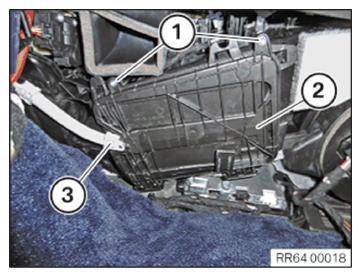

- Tighten screws (1) on the cover of the microfilter housing (2).
TIGHTENING TORQUES SPECIFICATION
| Microfilter lid on heating and air-conditioning unit | ||
|---|---|---|
| Screw | Tightening torque | 2.8 Nm |
- Connect water drain hose (3).
Follow-up work
- Install the right footwell TRIM PANEL .
