Checking/topping up the oil level in the automatic transmission
Preliminary work
- Remove rear UNDERBODY PROTECTION .
Prerequisite
Vehicle in horizontal position (level surface).
The vehicle is secured against rolling away.
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow manufacturer safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
To set the correct oil level, it is mandatory that the service function "Transmission control unit: Oil-level adjustment" is carried out with the diagnostic system using an appropriate scan tool.
To set the correct oil level, it is mandatory that the service function "Transmission control unit: Oil-level adjustment" is carried out with the diagnostic system using an appropriate scan tool.
NOTE:
TECHNICAL INFORMATION
Carry out an oil-level adjustment:
An oil-level adjustment is required when there are certain fault memory entries in the automatic transmission and after a repair has been carried out (e.g. replacement of the mechatronics, replacement of the converter, replacement of the transmission, automatic transmission fluid service).
Carry out an oil-level adjustment:
An oil-level adjustment is required when there are certain fault memory entries in the automatic transmission and after a repair has been carried out (e.g. replacement of the mechatronics, replacement of the converter, replacement of the transmission, automatic transmission fluid service).
NOTE:
The automatic transmission fluid specified by BMW must be used for the automatic transmission.
NOTE:
For ADDITIONAL INFORMATION
see: SBS-ANL-SBS1996-240596143_A14 (automatic transmission fluid for ZF transmissions, etc.)
- Connect diagnostic system using an appropriate scan tool.
- Observe the predefined transmission oil temperature for the oil-level adjustment with the diagnostic system using an appropriate scan tool:
- Initial condition: Transmission oil temperature 30°C to 40°C.
- End condition: Transmission oil temperature 40°C to 50°C.
- Call up service function (drive).
- Carry out oil-level adjustment in accordance with instructions.

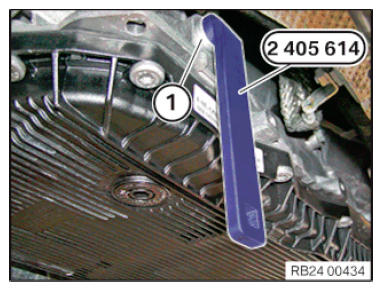

- Loosen the oil filler plug (1) using the special tool 2 405 614.
- Top up automatic transmission fluid according to the instructions in the diagnostic system using an appropriate scan tool.
TECHNICAL DATA - GA8HP51Z TRANSMISSION CAPACITY SPECIFICATION
| GA8HP51Z transmission capacity | |
|---|---|
| min. 9.28 L | |
TECHNICAL DATA - GA8HP76Z TRANSMISSION CAPACITY SPECIFICATION
| GA8HP76Z transmission capacity | |
|---|---|
| min. 9.35 L | |
NOTE:
TECHNICAL INFORMATION
The setpoint torque deviates from the adjustable torque when using special tool 2 405 614.
The setpoint torque deviates from the adjustable torque when using special tool 2 405 614.

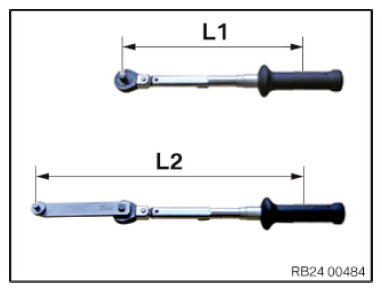

- Converting the setpoint torque into the adjustable torque:
(setpoint torque x L1) 0: L2 = adjustable torque
L1 = length from the center of the grip to the reversible ratchet head
L2 = length from the center of the handle to the engaging of the special tool in the bolt
- Replace the oil filler plug (1) and the sealing ring.
Parts: Oil filler plug, sealing ring

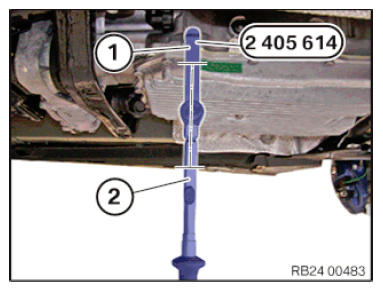

- Make sure that the special tool 2 405 614 and the torque wrench (2) align while tightening the oil filler plug (1).
- Tighten the oil filler plug (1) with the special tool 2 405 614 and the torque wrench (2).
TIGHTENING TORQUES SPECIFICATION
| Oil filler plug | ||
|---|---|---|
| M18x1.5 | Tightening torque | 35 Nm |
Follow-up work
- Install rear UNDERBODY PROTECTION .
