Change transfer box oil (ATC 13-1)

• Open the oil filler plug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION  Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

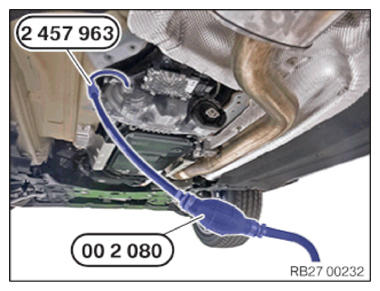

  • Extract the transmission oil from the transfer box (VTG) using special tool 0 493 337 (00 2 080)  and special tool 2 457 963.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Top up transmission oil up to the lower edge of the opening for the oil filler plug using special tool 0 493 337 (00 2 080).
  TECHNICAL DATA - TRANSFER BOX SPECIFICATION



  Filling capacity of transfer box
  Transfer-box oil		min. 0,7 L

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the oil filler plug (1).

  Parts:  Oil filler plug

• Tighten the oil filler plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install transmission CROSS MEMBER .
• Install rear UNDERBODY PROTECTION .
