0 494 417 (17 0 100) Tester
| Use | For checking engine cooling system on watertightness. For checking radiator cap. |

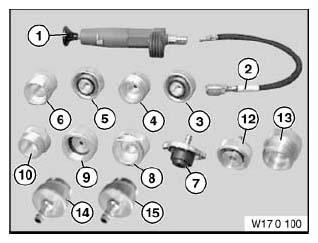

COMPRISING SPECIFICATION
| No. | BMW order number | Replaced by | Description | In conjunction with |
|---|---|---|---|---|
| 5 | 0 494 422 (17 0 105) | Adapter For radiator cap (sawtooth thread) |
||
| 10 | 0 494 427 (17 0 111) | Adapter For radiator cap R53/W11, R50/W17 adapter replaces 17 0 052. |
||
| 1 | 0 494 418 (17 0 101) | Pump Spare part for set 8330 0494417 (170100) |
||
| 2 | 0 494 419 (17 0 102) | Hose (hose with quick-release coupling) |
||
| 3 | 0 494 420 (17 0 103) | Adapter For radiator cap (normal thread) |
||
| 4 | 0 494 421 (17 0 104) | Adapter For radiator cap (normal thread) |
||
| 6 | 0 494 423 (17 0 106) | Adapter For radiator cap (sawtooth thread) |
||
| 7 | 0 494 424 (17 0 107) | Adapter For radiator cap R50/W10 |
||
| 8 | 0 494 425 (17 0 108) | Adapter For radiator cap R50/W10 |
||
| 9 | 0 494 426 (17 0 109) | Adapter For radiator connection R53/W11, R50/W17 adapter corresponds to 17 0 051 |
||
| 11 | 0 494 428 (17 0 112) | Case | ||
| 12 | 0 494 642 (17 0 113) | Adapter For radiator cap series: E60, E61, E63, E64 SI no.: 1 08 03 (988) |
||
| 13 | 0 494 643 (17 0 114) | Adapter For radiator cap series: E60, E61, E63, E64 SI no.: 1 08 03 (988) |
||
| 14 | 0 495 889 (17 0 115) | Adapter For radiator cap series: N12, N14 |
