2 249 117 Gauge

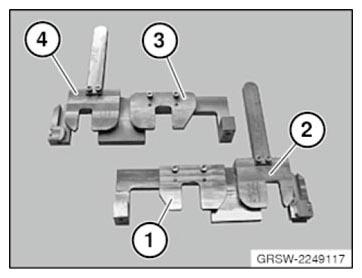

G08464241Courtesy of BMW OF NORTH AMERICA, INC.
Use For securing camshaft at TDC. (S63TU)
COMPRISING SPECIFICATION

No. BMW order number Replaced by Description In conjunction with
1 2 249 137   Gauge
Gauge, intake camshaft, bank 1. Available as part of set of special tools 83 30 2 249 117 only.
2 2 249 140   Gauge
Gauge NW exhaust bank 1. Available only as complete set 83 30 2 249 117.
3 2 249 144   Gauge
Gauge NW intake bank 2. Available only as complete set 83 30 2 249 117.
4 2 249 159   Gauge
Gauge NW exhaust bank 2. Available only as complete set 83 30 2 249 117.
