51 24 130 Removing and installing/replacing striker for tailgate lock (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove striker for tailgate catch
Remove striker for tailgate catch
Preliminary works
Remove the tailgate
LIFT SWITCH
.
Remove tailgate
TRIM PANEL
.

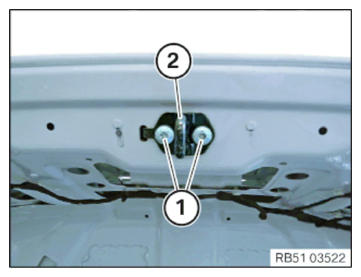

Loosen screws (1).
Remove the striker for the tailgate catch (2).
Courtesy of BMW OF NORTH AMERICA, INC.
