Remove the blower for the heating and air-conditioning unit

Preliminary works

• Remove the right footwell TRIM .
• Remove front entrance COVER STRIP .
• Remove the right-hand a-pillar footwell side TRIM PANEL .

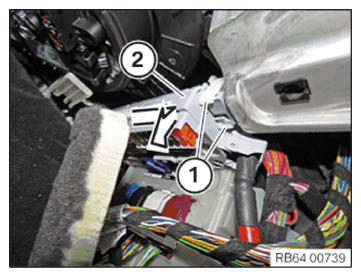

• Unlock the latch mechanisms (1).
• Remove the power distribution box (2) in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

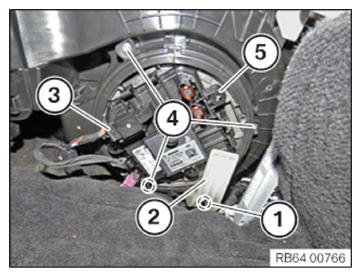

• Loosen screw (1) and remove bracket (2).
• Unlock and disconnect connector (3).
• Loosen screws (4) and remove the blower (5).

  Courtesy of BMW OF NORTH AMERICA, INC.
