Install the blower for the heating and air-conditioning unit

• Position the fan (5) correctly and tighten the screws (4).
  TIGHTENING TORQUES SPECIFICATION



  Heater/air conditioner
  Screw	Tightening torque	1.2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (3) and lock.
• Position the holder (2) correctly and tighten the screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Heater/air conditioner
  Screw	Tightening torque	1.2 Nm

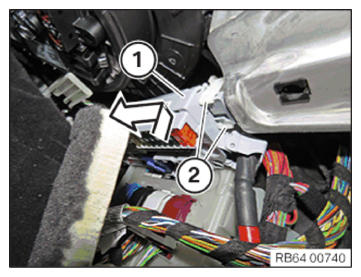

• Install the power distributor (1) in the direction of the arrow and snap into the latch mechanisms (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install right a-pillar footwell side TRIM PANEL .
• Install the front door sill COVER STRIP .
• Install the right footwell TRIM PANEL .
