Removing the evaporator

Release the holder (1) and remove the foam material (2).
Release the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the latch mechanisms (1) and remove the air distributor (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect connector (1).
Remove the wiring harness (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Disconnect the connector (1) and pull out the evaporator temperature sensor (2) from the heating and air-conditioning unit (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew the screws (1) and remove the bottom cover.

Courtesy of BMW OF NORTH AMERICA, INC.

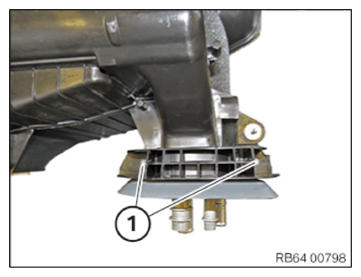

Loosen the latch mechanisms (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen latch mechanism (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the latch mechanism (1) and remove the housing (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove heat exchanger for heating system (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Turn the heating and air-conditioning unit around.

Courtesy of BMW OF NORTH AMERICA, INC.
Pull off the water drain hose (1).
Unscrew the screws (2) and remove the cover of the microfilter housing (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Pull out both microfilters (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew all screws in the marked area and remove the upper section of the distributor housing (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the evaporator (1) from the distributor housing (2).

Courtesy of BMW OF NORTH AMERICA, INC.
