64 11 Heating And Air-Conditioning Unit With Actuation
>>
64 11 794 Removing and installing/replacing controller for rear passenger compartment blower (after vehicle diagnosis) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>

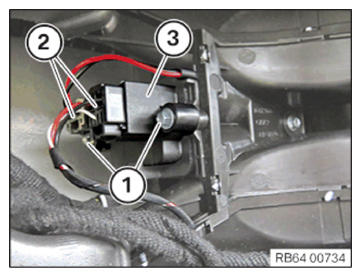

Installing the controller for the rear compartment blower
Installing the controller for the rear compartment blower
Position controller (3) correctly.
Tighten the screws (1).
Position, connect and lock the connector (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up Work
Install the center armrest
STORAGE COMPARTMENT
.
