Remove rear-compartment stratification flap motor, right

NOTE: TECHNICAL INFORMATION
After the replacement, the controller drive must be reconfigured.
The address can only be configured with the diagnosis system.

Preliminary works

Remove the right footwell TRIM .

Loosen the air duct (1) from the latch mechanisms in the downward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

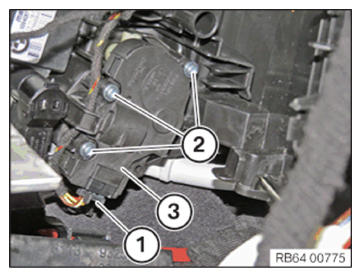

Unlock plug connection (1) and disconnect.
Loosen screws (2) and remove rear-compartment stratification flap motor (3).

Courtesy of BMW OF NORTH AMERICA, INC.
