Remove the control electronics for the ionizer

NOTE: TECHNICAL INFORMATION
Vehicle programing/coding must be performed after installation.
For additional information see: 61 00... PROGRAMING/ENCODING control unit(s)

Preliminary works

Remove the right footwell TRIM .

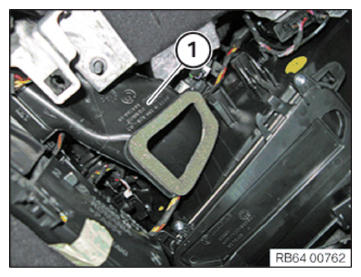

Disengage the air duct (1) from the heating and air-conditioning unit toward the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

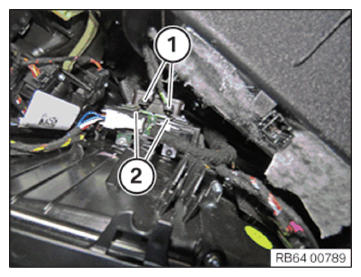

Unlock plug connection (1) and disconnect.
Disengage the locks (2) and pull the control electronics downward.
Disconnect the associated plug connections and remove the control electronics.

Courtesy of BMW OF NORTH AMERICA, INC.
