Remove microfilter for passenger compartment ventilation
NOTE:
RISK OF DAMAGE, Damage to the heating and air conditioning system. Use of unapproved microfilters may cause impairment of functions in the air conditioning.
- Only operate the heating and air conditioning system with the specified microfilter.
Preliminary works
- Remove the right footwell TRIM .

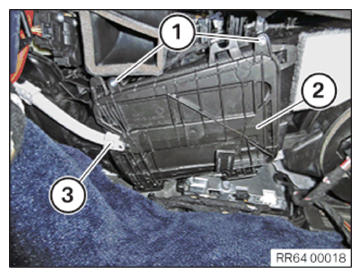

- Detach screws (1) to the cover of the microfilter housing (2).
- Pull off the water drain hose (3).

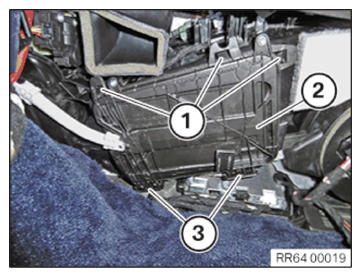

- Disengage the latch mechanisms (1).
- Guide out and remove cover of microfilter housing (2) on guides (3).
- Remove both microfilters for interior ventilation (1) from the microfilter housing (2) in a downwards direction.
