Installing the microfilter for the interior ventilation

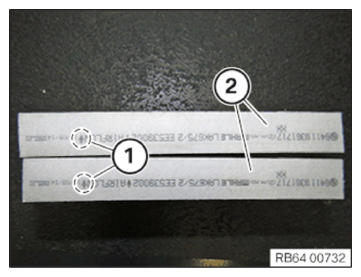

• Align the microfilter for interior ventilation (2) so that the arrows (1) on the microfilters for interior ventilation (2) point to the direction of travel during the installation.

  Courtesy of BMW OF NORTH AMERICA, INC.

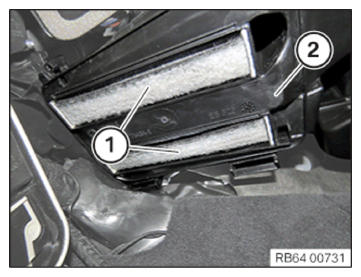

• Slide both microfilters for interior ventilation (1) up into the microfilter housing (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

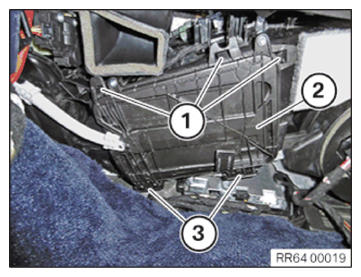

• Guide in cover of microfilter housing (2) into guides (3).
• Engage latch mechanisms (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

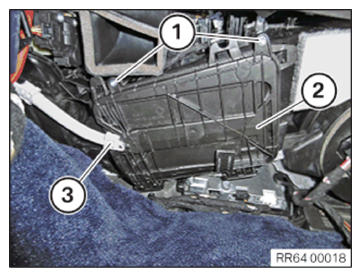

• Tighten screws (1) to the cover of the microfilter housing (2).
  TIGHTENING TORQUES SPECIFICATION



  Microfilter lid on heating and air-conditioning unit
  Screw	Tightening torque	2.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect water drain hose (3).

Follow-up Work

• Install the right footwell TRIM PANEL .
