Remove expansion valve

Preliminary work

• Suction the AIR CONDITIONING .
• Remove the acoustic COVER .
• Remove intake silencer HOUSING .

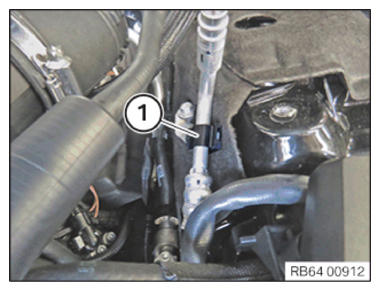

• Open the holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

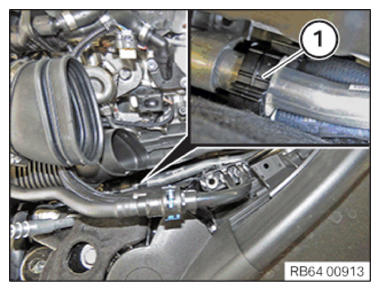

• Open the holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  CAUTION: Residual pressure in the heating and air conditioning system.
  Injury hazard!

  • Wear safety goggles and protective gloves when disconnecting the refrigerant line.
  • Close the refrigerant lines with seal plugs.

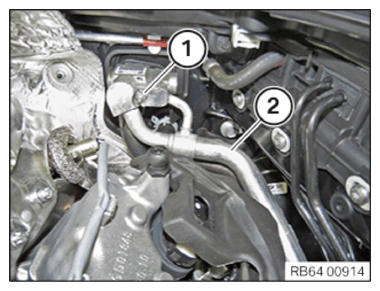

• Loosen nut (1).
• Remove the refrigerant line (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

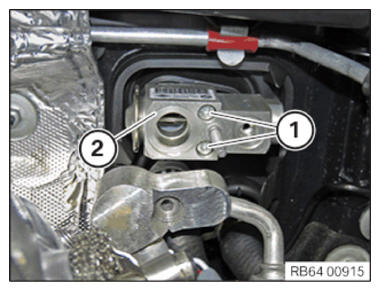

• Loosen screws (1).
• Remove the expansion valve (2).

Courtesy of BMW OF NORTH AMERICA, INC.
