Installing top radiator

NOTE: TECHNICAL INFORMATION
The radiator must not be damaged. If the radiator is damaged or has dents/kinks, replace the radiator.
Faulty positioning pins must be replaced.
Exchange the venting unit if the radiator is leaking.
If the radiator is only removed and reinstalled, replace the sealing rings on the flange of the radiator.

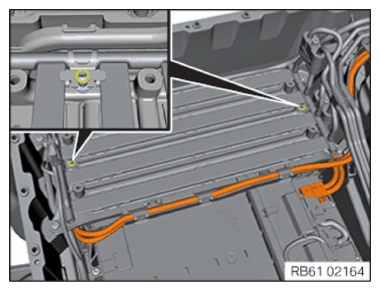

Insert radiator (1) carefully and clip in to cooler pin.

Courtesy of BMW OF NORTH AMERICA, INC.
Hand-tighten the bolts (1) on the radiator (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the plastic washers to the radiator pin.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The radiator must not be damaged. If the radiator is damaged or has dents/kinks, replace the radiator.
Faulty positioning pins must be replaced.
Exchange the venting unit if the radiator is leaking.
If the radiator is only removed and reinstalled, replace the sealing rings on the flange of the radiator.

Insert radiator (1) carefully and clip in to cooler pin.

Courtesy of BMW OF NORTH AMERICA, INC.
Hand-tighten the bolts (1) on the radiator (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the plastic washers to the radiator pin.

Courtesy of BMW OF NORTH AMERICA, INC.
