Installing the module carrier on the front door

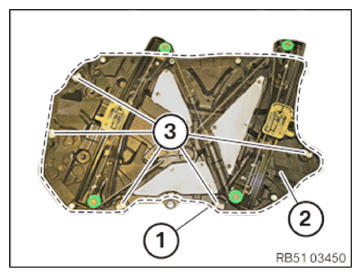

• Check gasket (1) of the module carrier (2) for damage.
• If the seal (1) is damaged, replace the module carrier (2).
• Open all the snap fasteners (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the module carrier (2) and close the snap fasteners (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

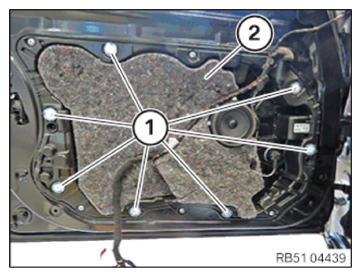

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

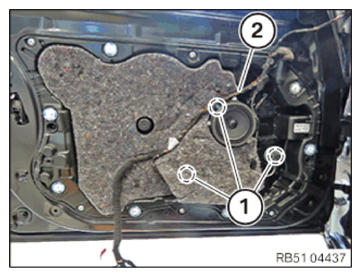

• Secure the wiring harness (2) to all cable clips.
• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Connecting all battery earth leads

• See ADDITIONAL INFORMATION .

Courtesy of BMW OF NORTH AMERICA, INC.

• Move the power window upwards until the fixed side window glass correctly engages in both holders.
• Remove adhesive tape.

Follow-up Work

• Install front door TRIM PANEL .
• Attach the door handle COVER .
• Install the front door WEATHER STRIP .
• Fit exterior MIRROR .
• Install the mirror triangle COVER .
• Activate the 48 v ELECTRICAL SYSTEM .
