Install the BDC control unit

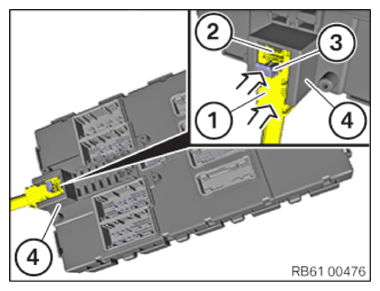

• Connect the connector of the positive battery cable (1) to the BDC control unit (4).

  It is essential to observe the sequence:

  1. Install the positive battery cable connector (1) in the direction of the arrow.
  2. Check that retaining lug (2) is engaged correctly.
  3. Close lock (3) in direction of arrow.

     Courtesy of BMW OF NORTH AMERICA, INC.

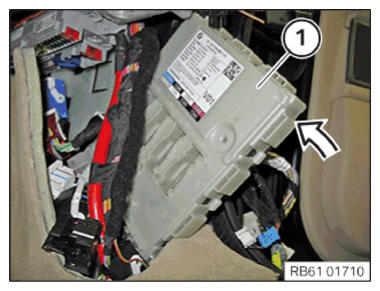

• Guide in the BDC control unit (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

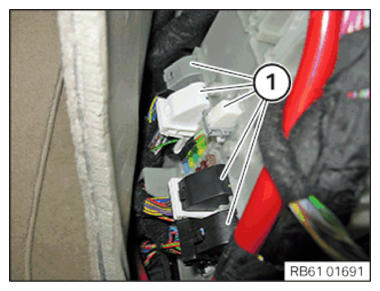

• Connect all connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

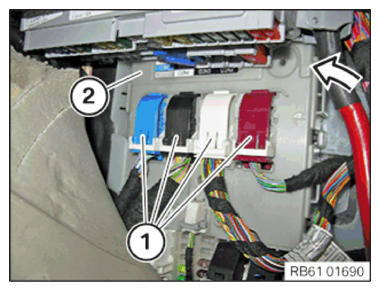

• Guide in the BDC control unit (2) in the direction of the arrow.
• Connect all connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

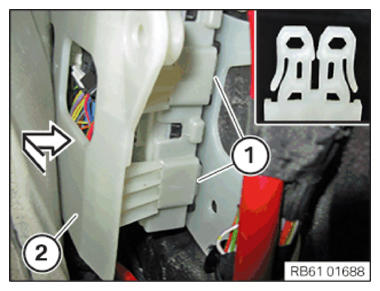

• Insert cover (2) in direction of arrow.
• Check the latch mechanisms (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

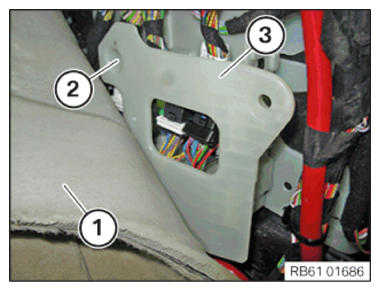

• Tighten screw (2) at cover (3).
  TIGHTENING TORQUES SPECIFICATION



  Body Domain Controller (BDC)
  Sheet metal screw 4.8x16	Tightening torque	1.2 Nm

• Position the carpet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install right a-pillar footwell side TRIM PANEL .
• Install the front door sill COVER STRIP .
• Install the right footwell TRIM PANEL .
• Connect all battery EARTH LEADS .
• ENCODE/PROGRAM control unit(s)
• INITIALIZE component protection
• Activate the 48 v ELECTRICAL SYSTEM .
