Removing window frame trim of rear door

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary works

Remove rear door WEATHER STRIP .

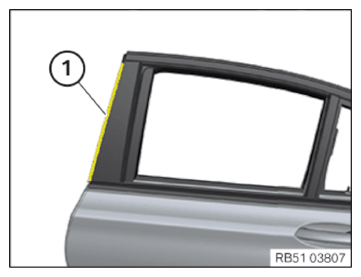

Detach rubber window seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

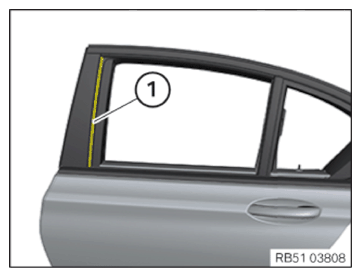

Detach rubber window seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE Careless handling of tools and sharp edged components. Scratch, surface damage.

Protect working area.
Handle tools and components carefully.

Loosen screws (2).
Press window frame trim (1) lightly to the front and feed out upwards.

G14195551

Courtesy of BMW OF NORTH AMERICA, INC.
