Installing the front lower strap

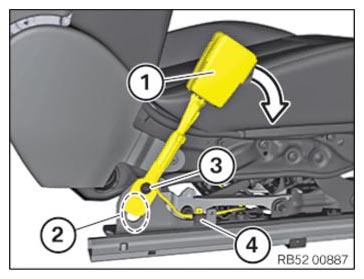

- Feed in lower strap (1) in area (2) and fold it forwards.
- Attach the cable clip (4).
- Tighten down screw (3).
TIGHTENING TORQUES SPECIFICATION
| Lower strap to seat mechanism | |
| Tightening torque | |
| M6 | 8 Nm |
- Feed in cable (2).
- Secure the cable clips (1).
- Clip connector (2) in connector housing (1).
- Fasten connector housing (1).
Follow-up Work
- Install front SEAT .
- Activate the 48 v ELECTRICAL SYSTEM .
