Unlocking/locking airbag plug connections (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.

CAUTION: An airbag plug connection must be replaced if it is damaged.
Sourcing reference for airbag repair instructions (with plug connection), see the applicable BMW Parts Catalogue.

Following versions of plug connections on airbag module/gas generator are possible:

Airbag plug connection on gas generator/airbag module is offset by 90°

Airbag plug connection on gas generator/airbag module is straight (3 versions)

Airbag plug connection on gas generator/airbag module offset by 90°:

There are two ways of unlocking this airbag plug connection on the gas generator/airbag module:

Method 1:

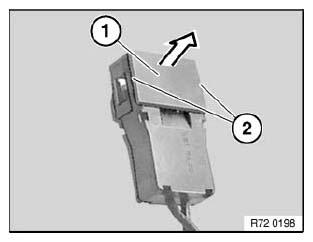

Simultaneously pull cover (1) upwards at lugs on left and right (2).

G04728072

Courtesy of BMW OF NORTH AMERICA, INC.

Method 2:

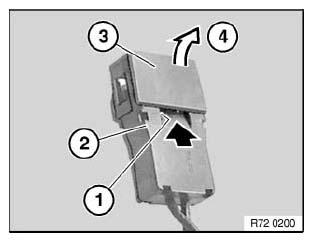

Insert a narrow screwdriver into recess (1) in housing (2).

Carefully pry cover (3) off (4).

G04728073

Courtesy of BMW OF NORTH AMERICA, INC.

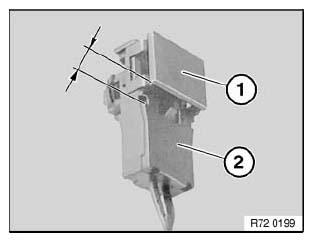

Cover (1) is not positioned higher than housing (2).

The airbag plug connection is unlocked and can now be detached from the gas generator/airbag module.

G04728074

Courtesy of BMW OF NORTH AMERICA, INC.

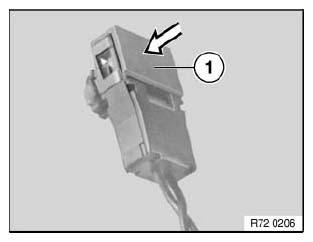

NOTE: After attaching airbag plug connection to gas generator/airbag module, press cover (1) downwards until it rests flat on housing.

Check that it catches properly.

G04728075

Courtesy of BMW OF NORTH AMERICA, INC.

Airbag plug connection on gas generator/airbag module is straight (2 versions)

Version 1:

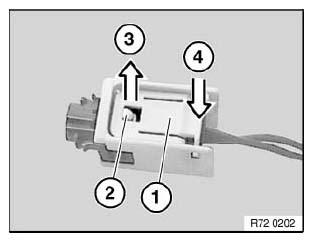

Press locking/unlocking plate (1) at edge (4).

Locking/unlocking plate (1) snaps upwards at opposite edge (3) and releases detent lug (2).

G04728076

Courtesy of BMW OF NORTH AMERICA, INC.

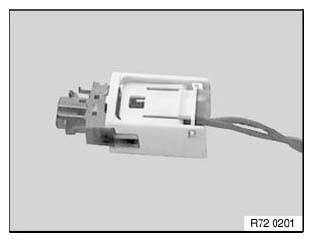

The airbag plug connection is unlocked and can now be detached from the gas generator/airbag module.

G04728077

Courtesy of BMW OF NORTH AMERICA, INC.

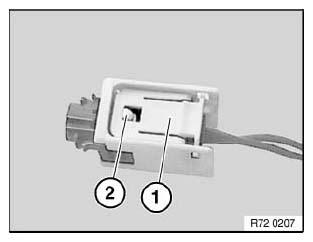

NOTE: After attaching airbag plug connection to gas generator/airbag module, check whether detent lug (2) is visible in opening of locking/unlocking plate (1).
Only if the detent lug (2) is visible will the airbag plug connection gas generator/airbag module be correctly engaged.

G04728078

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

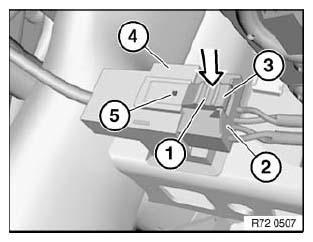

Press locking/release plate (1) on edge (3) and pull connector (2) out of connector housing (4).

NOTE: Only if the retaining lug is visible in opening (5) will the gas generator/airbag module plug connection be correctly engaged.

G04728079

Courtesy of BMW OF NORTH AMERICA, INC.

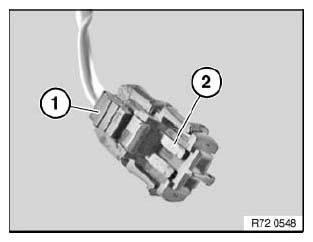

Version 3:

Press the lock (1) and pull out the connector (2) up to initial engagement position.

Detach connector (2) from firing pellet.

NOTE: Insert plug connection in initial engagement position in gas generator/airbag module and engage in final engagement position.

G04728080

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration of version 3 with gas generator:

Initial engagement position
Final engagement position
1. Lock
2. Gas generator

G04728081

Courtesy of BMW OF NORTH AMERICA, INC.

Version 4 - crash-active headrest:

Press locking clip at edge and disconnect connector (1).

NOTE: Check for correct engagement.

G04748092

Courtesy of BMW OF NORTH AMERICA, INC.
