Removing knee airbag
WARNING:
Airbag unit.
Danger! Life-threatening injuries!
Danger! Life-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery earth lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00... SAFETY REGULATIONS on handling airbag system components/gas generators
Preliminary works
- Disconnect all battery EARTH LEADS .
- Remove the pedal mechanism TRIM PANEL .

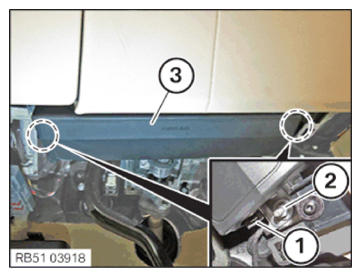

- Unlock plug connection (1) and disconnect.
- Loosen the screws (2) on left and right.
- Remove knee airbag (3) towards the bottom.
