Adjusting the camber on the left

Prerequisite

TOE ADJUSTMENT is within the tolerance.

NOTE: TECHNICAL INFORMATION
Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment.

NOTE: TECHNICAL INFORMATION
Camber and toe-in influence each other. Adjust the toe-in first in order to simplify the adjustment procedure. The camber is exclusively adjusted by exchanging the upper wishbone. There are various wishbones for this purpose (+/-30').

NOTE: TECHNICAL INFORMATION
The camber correction wishbones are used to correct the camber values by 30 minutes. To be used only if the tolerance values are exceeded or undershot.

Preliminary work

Check the CAMBER .

Adjust the camber on the left if the measured value for the camber on the left is outside the tolerance.
Removing the front left wheel

Remove the WHEEL

NOTE: TECHNICAL INFORMATION
A wheel lifter is recommended for easier wheel removal and installation without exertion (see the applicable BMW Parts Catalog).
In vehicles with M Carbon ceramic brake: It is essential to use the wheel lifter to remove the wheel.

Courtesy of BMW OF NORTH AMERICA, INC.

This process is intended to prevent damage to the brake disc.
If several wheels are removed simultaneously:
Use a piece of chalk to mark on each tire the axle and side on which the corresponding wheel is fitted.
Release the lug bolts (arrows) crosswise and remove the wheel.
For releasing and tightening lug bolts with the security code: Use the correct adapter from the set of special tools 0 492 518 (36 1 300).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the COVER of the engine compartment at the rear left
Loosen the lock (1).
Remove the cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Detach the spring strut in front
Loosen the rivet (1).
Remove the cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove top wishbone
Release the nut (1) of the front screw connection above at the upper wishbone on shock tower in the engine compartment.

Courtesy of BMW OF NORTH AMERICA, INC.

Support swivel bearing
Secure special tool 2 358 630 to drive flange with lug bolts.
Support the swivel bearing using the special tool 2 358 630 and the universal jack.

Courtesy of BMW OF NORTH AMERICA, INC.
Release nut (1).
Pull out screw (2).
Release upper wishbone (3) from the swivel bearing (4).
(F) = driving direction

Courtesy of BMW OF NORTH AMERICA, INC.
Undo nut (1) of the ride height sensor on the upper wishbone.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (3).
Pull the spring strut outwards slightly until the screws (2) and (3) can be pulled out.
Pull out screws (2) and (3).
Remove top wishbone (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install top wishbone
Replace the clip nut (1) of the rear screw connection of the upper wishbone on the body.
Parts: Clip nut

Courtesy of BMW OF NORTH AMERICA, INC.
Position the upper wishbone (1).
Replace screws (2) and (3).
Parts: Screws
Slight pull the spring strut outwards and install screws (2) and (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace nut (1).
Parts: Nut
Hand-tighten the nut (1) of the front screw connection on the upper wishbone on the shock tower in the engine compartment.

Courtesy of BMW OF NORTH AMERICA, INC.
Set the normal position of the upper wishbone (1).
Set the lower edge of the upper wishbone (1) to the bodywork vertically to 100 mm.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the screw (2).
Parts: Screw

Tighten screw (2) of the upper wishbone (1) using torque wrench and open-end wrench insert.

TIGHTENING TORQUES SPECIFICATION

Upper wishbone to body
M10 Replace screw and nut.	Tightening torque	54 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace nut (1).
Parts: Nut

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Upper wishbone to body
M10 Replace screw and nut.	Tightening torque	54 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Position upper wishbone (3) on the swivel bearing (4).
Replace screws (2) and nuts (1).
Parts: Bolt, nut
Insert screw (2).
The screw (2) must be positioned in the groove of the tappet of the upper wishbone (3).

(F) = driving direction

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Upper wishbone to swivel bearing
M10 Replace screw and nut.	Tightening torque	56 Nm

Position jointed rod on upper wishbone.
Replace nut (1).
Parts: Nut

Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Jointed rod ride height sensor on wishbone
M6	Tightening torque	8 Nm

Lower the universal jack and put it away.
Remove special tool 2 358 630.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach the front spring strut
Position the spring strut on the strut-tower.
Replace screws (1).
Parts: screw

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Front spring strut support bearing to body
M8 Replace screws.	Tightening torque	28 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Position the cover (2).
Secure the rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the cover of the engine compartment on the rear left
Install the cover (2).
Lock the lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Mounting the wheel

NOTE: TECHNICAL INFORMATION
The contact surface between the brake disc and the wheel rim must be clean and free from oil and grease. There is otherwise a risk of the wheel becoming loose at a later time.

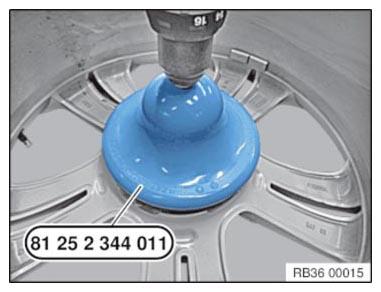

Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011.
Do not operate special tool 2 344 011 with an impact screwdriver.
Degrease the contact surfaces with the universal cleaner (see the applicable BMW Parts Catalog).
In the event of grease residues in the area of the wheel bolt holes, remove and clean the brake disk.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011.
Do not operate special tool 2 344 011 with an impact screwdriver.
Degrease the contact surfaces with the universal cleaner (see the applicable BMW Parts Catalog).

Courtesy of BMW OF NORTH AMERICA, INC.

Check if the mounting bolt (1) has been fitted correctly for the brake disk.

The mounting bolt (1) for the brake disk cannot protrude on the contact surface (2) between the brake disk and the rim.

TIGHTENING TORQUES SPECIFICATION

Brake disc to front wheel hub
M8 Replace screw.	Tightening torque	16 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Brake disc to rear wheel hub
M8 Replace screw.	Tightening torque	16 Nm

NOTE: TECHNICAL INFORMATION Do not grease the wheel hubs and wheel centering in models G80, G82 and G83.

Lightly grease the wheel centering (1) in the rim.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE - BRAKE BLOCK PASTE DESCRIPTION

Brake block paste * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only.	3 g, Bag	83192158851
	100 g, Tube	83192158852
	5 g, TU*	83230140233

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION Do not grease the wheel hubs and wheel centering in models G80, G82 and G83.

Apply a thin layer of grease to the front and rear wheel hubs (1) to protect against corrosion.

CONSUMABLE - BRAKE BLOCK PASTE DESCRIPTION

Brake block paste * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only.	3 g, Bag	83192158851
	100 g, Tube	83192158852
	5 g, TU*	83230140233

NOTE: TECHNICAL INFORMATION A wheel lifter is recommended for easier wheel removal and installation without exertion (see the applicable BMW Parts Catalog).

In vehicles with M Carbon ceramic brake: The wheel lifter must be used to install the wheel.
This process is intended to prevent damage to the brake disc.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

Check lug bolts for wear.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Spots (> 30%) of the bearing surface (1) of the taper on the screw head show silvery wear.

Measure

Replace lug bolts.

Parts: Lug bolts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Never use an impact screwdriver or electric screwdriver to apply and tighten the lug bolts.
The rim must rest evenly against the brake disc.
In the case of non-original BMW lug bolts/wheel rims, it may be necessary to retighten the lug bolts on user account of setting properties (refer to the documentation from the manufacturer).
Do not apply oil to new lug bolts.

Replace the corroded lug bolts (arrows).
Parts: Lug bolts
Clean wheel bolts (arrows).
Check lug bolts (arrows) and threads for damage, replace lug bolts (arrows) if necessary.
Join and tighten the lug bolts (arrows).

TIGHTENING TORQUES SPECIFICATION

Lug bolts
M14/SW17 Screw in lug bolts and evenly tighten crosswise by hand in order to center the wheel rim. Tighten lug bolts to the prescribed tightening torque with a calibrated torque wrench in a crosswise sequence. Check all the lug bolts in the same order or retighten to the prescribed tightening torque again.	Tightening torque	140 Nm
	Check	140 Nm
