Install the speaker cover on the door trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.

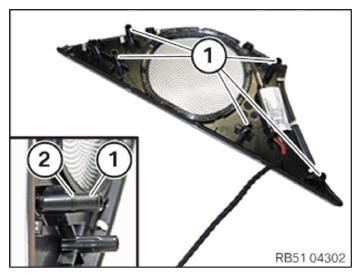

- Saw off all welding pins (1) along the molding (2).
- Remove welding remnants on door trim panel with a scalpel.

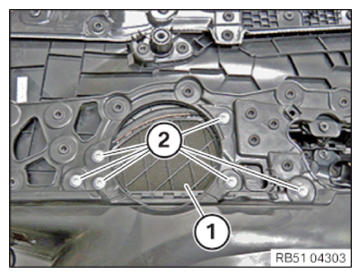

- Install speaker cover (1).
NOTE:
Welding pins must not protrude from the door trim panel.
- Screw the repair screws (2) into the speaker cover (1) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Repair screw to door trim panel | ||
|---|---|---|
| Oval-head screw TS4x10 ISA |
Tightening torque | 2.3 Nm |
Follow-up Work
- Install front door TRIM PANEL .
- Install the mirror triangle COVER .
- Attach the door handle COVER .
