Remove the universal joint at the lower steering shaft

NOTE: RISK OF DAMAGE
Damage to steering column switch cluster (SZL).
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column.

After separating the lower steering shaft (or the universal joint) from the steering gear or from the steering column, secure the steering wheel against twisting.

Preliminary work

Remove the center UNDERBODY PROTECTION .
Remove the pedal mechanism TRIM PANEL .

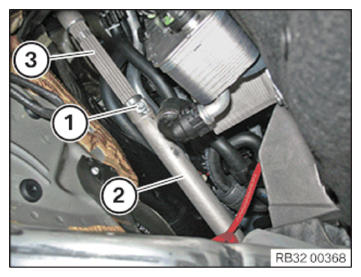

Loosen screw (1).
Detach universal joint (2) from lower steering shaft (3).
