Installing the steering column
- Carefully feed in the steering column from the top and position it.
- Fit the nuts (1)
.NOTE: Do not fully tighten the nuts yet.
- Fit the nuts (1)
.NOTE: Tightening with the torque wrench (2) follows in the next work step in the sequence.
- It is mandatory
to tighten the nuts in sequence (1)
to (4)
.TIGHTENING TORQUES SPECIFICATION
Steering column to dashboard support M8

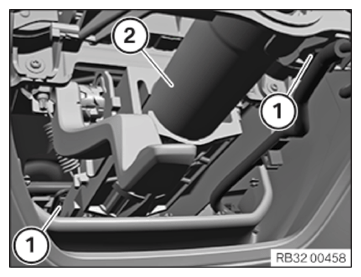

Observe tightening sequence.Tightening torque 21.4 Nm - Secure cable (1) on the steering column (2) .
Follow-up work
- Install the bottom steering shaft on the STEERING COLUMN .
- Install KNEE AIRBAG .
- Install the pedal assembly TRIM PANEL .
- Install the steering column SWITCH CLUSTER (SZL).
- Install steering lower section column SHROUD .
- Fit steering upper section column SHROUD .
- Install STEERING WHEEL .
- Install the steering wheel or sports steering wheel AIRBAG UNIT .
- Reconnect all battery GROUND LEADS .
- Activate the 48 v ELECTRICAL SYSTEM .
- Check the steering wheel STRAIGHT-AHEAD DRIVING POSITION .
- CHECK the airbag for function.
