Remove the speaker cover from the rear door trim panel
Preliminary works
- Remove the door handle COVER .
- Remove rear door TRIM PANEL .
NOTE:
Description is for left component only. Procedure on the right side is identical.

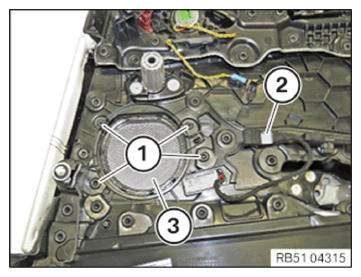

- Drill out and/or grind down the spot-welds (1).
- Detach the plug connection (2).
- Feed out speaker cover (3).
