37 11 Control And Suspension Elements, Front
>>
37 11 510 Removing and installing/replacing front active anti-roll bar (530i xDrive 2017-2022, 530e xDrive PHEV 2018-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Replacement: Remount the holder on front active stabilizer
Replacement: Remount the holder on front active stabilizer

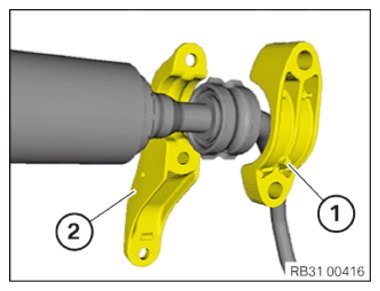

Remove the upper section (1) and the lower part (2) of the holder.
Check holder for damage; replace if necessary.
Mount holder on new anti-roll bar as shown in figure.
