37 12 621 Replacing rear active stabilizer (After vehicle diagnosis) (Without programing/coding) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022)
>>
Remove the rear active stabilizer
Remove the rear active stabilizer

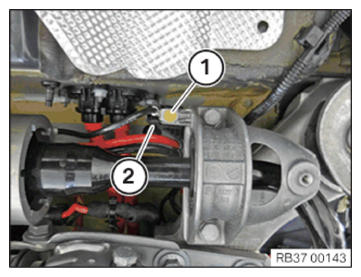

Release the bolt (1) and detach the cable clip (2) from the right-hand retainer.
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.

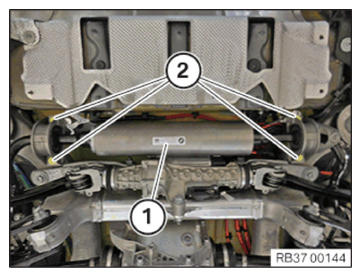

Loosen screws (2).
Remove active stabilizer (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
