Prepare the front axle for installation

Loosen screws (2).
Remove the heat shield (1).

Courtesy of BMW OF NORTH AMERICA, INC.
- Remove luggage strap.
- Lift down the front axle support (1) from the special tool with a second person.
- Position the new front axle support (1) on the special tool.
Courtesy of BMW OF NORTH AMERICA, INC.

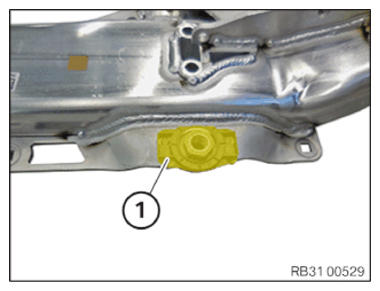

Install the cage nut (1) for the left and right steering gear.

Courtesy of BMW OF NORTH AMERICA, INC.

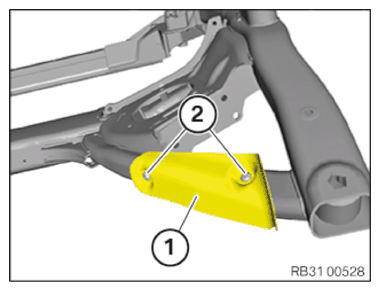

Position the heat shield (1) on the front axle support.

Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Heat shield to front axle carrier
	tightening torque
	8 Nm
