Positioning the mobile lifting table

Position mobile lifting table centrally 2 184 136 under vehicle and jack it up.

Courtesy of BMW OF NORTH AMERICA, INC.
Position mounting elements (1) with mountings (50) at front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.
Position mounting elements (1) with mountings (80) at front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

Courtesy of BMW OF NORTH AMERICA, INC.

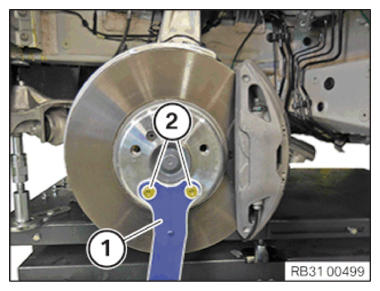

Position the mount (1) for the swivel bearing.
Hand-tighten the bolts (2).
