Remove lower wishbone
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
NOTE:
TECHNICAL INFORMATION
Do not mix up the left and right.
Do not mix up the left and right.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
NOTE:
RISK OF DAMAGE
Component damage caused by striking tools.
Brute force can result in component damage.
Component damage caused by striking tools.
Brute force can result in component damage.
- Only use those tools intended for the work.

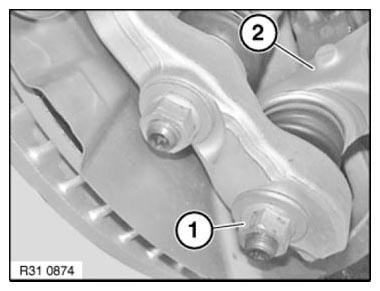

- Release the nut (1).
- Pull out the screw at the lower wishbone (2).

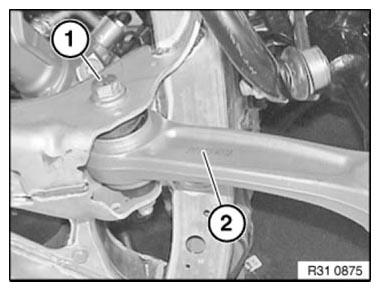

- Release the nut (1).
Counter-hold at the Torx socket.
- Release the lower wishbone (2) from the swivel bearing.

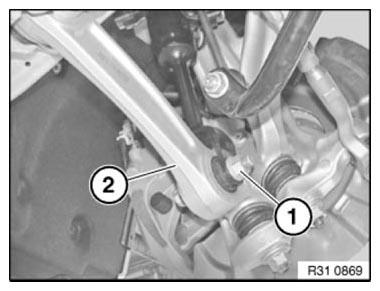

- Unfasten nut.
- Pull out screw (1).
- Feed out the lower wishbone (2) and remove it.
