Installing the anti-roll bar

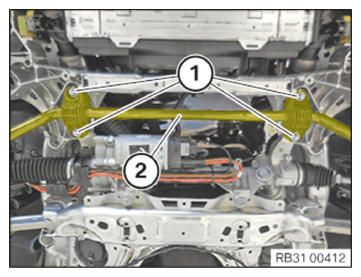

- Position the anti-roll bar (2).
- Replace screws (1).
Parts:
screw
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Anti-roll bar to front axle support |
M12
Replace screws. |
Joining torque
100 Nm
Angle of rotation
45° |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
