31 51 Front Axle Differential Seal
>>
31 51 600 Replacing both dust plates (drive flange removed) (530i xDrive 2017-2022, 530e xDrive PHEV 2018-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Press both dust plates on
Press both dust plates on

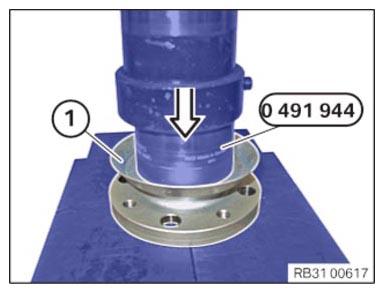

Press the large dust plate (1) onto the input flange with a hydraulic press and the special tool
0 491 944 (31 2 272).
Courtesy of BMW OF NORTH AMERICA, INC.
Press the small dust plate (1) onto the input flange with a hydraulic press and the special tool
0 491 913 (31 2 130).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
