Front Axle - Repair (G30)
>>
31 60 Output Shaft Bellows
>>
31 60 535 Replacing two bellows of the output shaft(s) (output shaft(s) removed) (530i xDrive 2017-2022, 530e xDrive PHEV 2018-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Inserting the output shaft
Inserting the output shaft

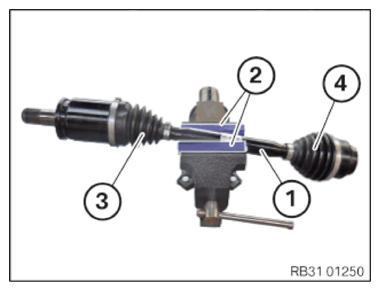

Clamp the output shaft (1) in the vice with aluminium vice jaw protectors (2).
(3) = Transmission-end bellows
(4) = Wheel-side bellows
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
